ホーム /製品/水晶ガラス管/High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes

High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes

1個
MOQ
$0.50 - $10.00/pieces
価格
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
タイプ: クリアクォーツチューブ
応用: 半導体、光学
厚さ: 0.5-100mm
形: 円形
加工サービス: 曲げ、溶接、パンチング、研磨
製品名: 石英管
材料: SIO2> 99.99％
密度: 2.2g/cm3
動作の一時的: 1150℃
硬度: モールス6.5
メルトポイント: 1750-1850℃
酸耐性: セラミックの30回、ステンレス鋼の150回
サイズ: カスタマイズされた
アニーリングポイント: 1180℃
ひずみ点: 1100℃
ポート: 上海とQindao港
ハイライト:

High Temperature Resistant Quartz Glass Tube

,

Corrosion Resistant Clear Quartz Tube

,

Customizable Size Fused Silica Tube
基本情報
起源の場所: 江蘇省
ブランド名: ShengFan
証明: ROSH SGS
モデル番号: QSP-1
お支払配送条件
パッケージの詳細: プラスチックバブル/ポリスチレンフォームシート/カートン/木製パレット
支払条件: T/T、L/C
供給の能力: 10000 個/月/個
製品の説明
Clear Quartz Tube for Semiconductor and Optical Applications
Product Characteristics
BrandShengfan Quartz
SiO₂ Content99.99%
Density2.2 g/cm³
Hardness (Mohs Scale)6.6
Melting Point1732℃
Working Temperature1100℃
Annealing Point1180℃
Softening Point1630℃
Specifications
ColorTransparent
ShapeCircular / Semicircular
StandardJGS1, JGS2, JGS3
Material99.99% SiO₂
Diameter1-800mm
Thickness0.2-100mm
ApplicationOptics quartz windows
Light Transmittance>92%
HardnessMohs 6.5
Resistance Value1000 times higher than ordinary glass
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 0
Customization Process
  • Provide detailed drawings with dimensions
  • We manufacture products according to your specifications
Unit: mm
Remarks: Additional requirements such as tolerance, polish, translucency, etc. can be provided according to demand.
We can customize any size quartz glass plate according to your drawing.
Application Scope
Used in semiconductors, electric light source devices, semiconductor communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment, chemical instruments, chemical industry, electronics, metallurgy and other industries.
Product Advantages
  • Resistant to corrosion
  • Withstands high temperatures
  • Attractive appearance
  • Compact structure
  • Easy to operate
  • Excellent light transmission
  • Strong electrical insulation
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 1 High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 2

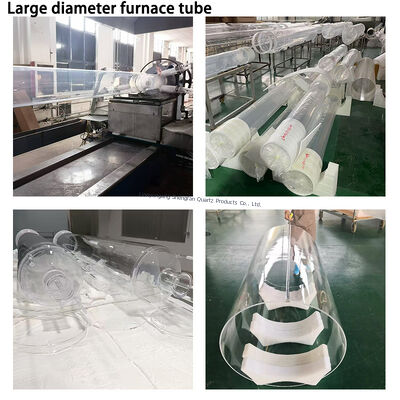

Production Process
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 3

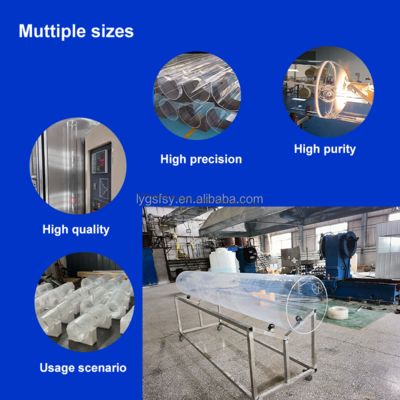

Applications
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 4
Product Uses
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 5

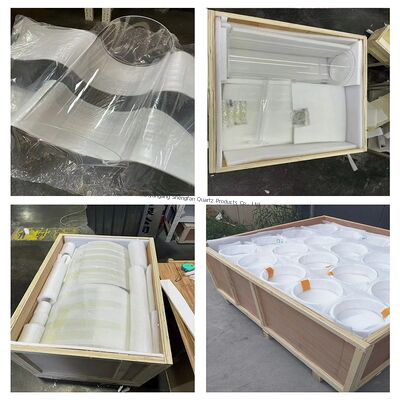

Packing & Delivery
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 6
Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacturer specialized in research and development of quartz plates, quartz tubes, quartz flanges, quartz rings, cuvettes and quartz instruments. The company is located in China Crystal Capital - Donghai City, Jiangsu Province, China, 70 km from Lianyungang port with convenient transportation.
Covering an area of 1000 square meters, we now have over 30 employees with annual sales exceeding USD 5.2 million.
With the philosophy of Technology Orientation, Quality First, Integrity and Responsibility, Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
High Temperature Resistant Clear Quartz Tube for Semiconductor and Optical Applications with Customizable Sizes 7
Our Services & Strength
The company adheres to integrity in business, with extensive experience, reasonable pricing, quality assurance, and excellent after-sales service. We sincerely welcome customers to come and negotiate.
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
A:
  • Provide your requirements or application details
  • We quote according to your requirements or our suggestions
  • Customer confirms samples and places deposit for formal order
  • We arrange production
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are available for small orders (3-5 days delivery). Airline and sea shipping are also available.
